tkinter.(ttk.)PanedWindow【ペインドウィンドウ ウィジェット】

色の詳細

マウスカーソル名の詳細 ( cursor )

外観の詳細 ( relief )

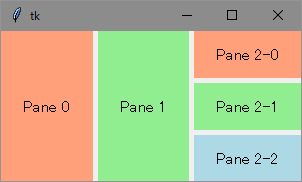

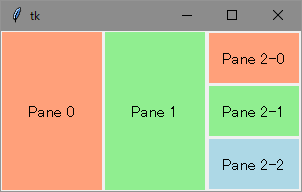

import tkinter as tk
from tkinter import font

# トップレベルウィンドウ作成
root = tk.Tk()
root.geometry("300x160")
# ラベル フォントサイズ設定
font_label = font.Font(size=12)
root.option_add("*Label.font", font_label)

# PanedWindow [Main]
pw_main = tk.PanedWindow(root)
pw_main.pack(expand=True, fill=tk.BOTH)
# [Main] - [Pane 0]
label_0 = tk.Label(pw_main, text="Pane 0", bg="LightSalmon")
pw_main.add(label_0, width=100)
# [Main] - [Pane 1]
label_1 = tk.Label(pw_main, text="Pane 1", bg="lightgreen")
pw_main.add(label_1, width=100)
# [Main] - [PanedWindow (Right)]
pw_right = tk.PanedWindow(pw_main, orient=tk.VERTICAL)
pw_main.add(pw_right)
# [Right] - [Pane 2-0]
label_2_0 = tk.Label(pw_main, text="Pane 2-0", bg="LightSalmon")
pw_right.add(label_2_0, height=50)
# [Right] - [Pane 2-2]
label_2_2 = tk.Label(pw_main, text="Pane 2-2", bg="lightblue")
pw_right.add(label_2_2, height=50)
# [Right] - [Pane 2-1]
label_2_1 = tk.Label(pw_main, text="Pane 2-1", bg="lightgreen")
pw_right.add(label_2_1, height=50, before=label_2_2)

# メインループ
root.mainloop()

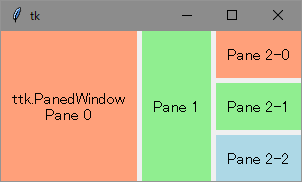

import tkinter as tk
import tkinter.ttk as ttk
from tkinter import font

# トップレベルウィンドウ作成
root = tk.Tk()
root.geometry("300x150")
# ラベル フォントサイズ設定
font_label = font.Font(size=12)
root.option_add("*TLabel.font", font_label)
# スタイル設定
style = ttk.Style()
style.configure("color0.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="LightSalmon")
style.configure("color1.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="lightgreen")
style.configure("color2.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="lightblue")

# PanedWindow [Main]
pw_main = ttk.PanedWindow(root, orient=tk.HORIZONTAL)
pw_main.pack(expand=True, fill=tk.BOTH)
# [Main] - [Pane 0]
label_0 = ttk.Label(pw_main, text="ttk.PanedWindow\nPane 0", style="color0.TLabel")
pw_main.add(label_0, weight=1)
# [Main] - [Pane 1]
label_1 = ttk.Label(pw_main, text="Pane 1", style="color1.TLabel")
pw_main.add(label_1, weight=1)
# [Main] - [PanedWindow (Right)]
pw_right = ttk.PanedWindow(pw_main)
pw_main.add(pw_right, weight=1)
# [Right] - [Pane 2-0]
label_2_0 = ttk.Label(pw_main, text="Pane 2-0", style="color0.TLabel")
pw_right.add(label_2_0, weight=1)
# [Right] - [Pane 2-2]
label_2_2 = ttk.Label(pw_main, text="Pane 2-2", style="color2.TLabel")
pw_right.add(label_2_2, weight=1)
# [Right] - [Pane 2-1]
label_2_1 = ttk.Label(pw_main, text="Pane 2-1", style="color1.TLabel")
pw_right.insert(label_2_2, label_2_1, weight=1)

# メインループ
root.mainloop()

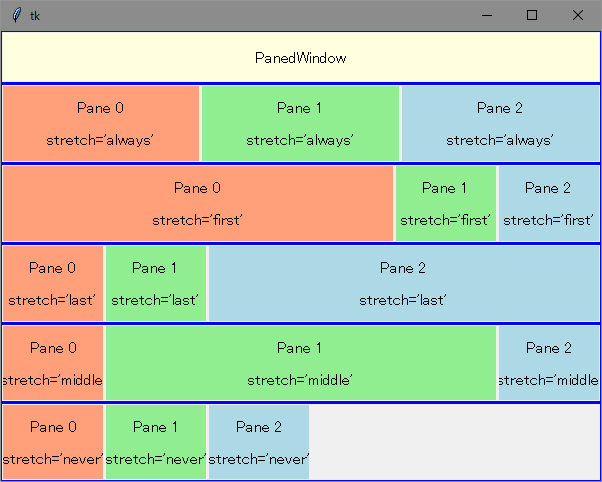

import tkinter as tk
from tkinter import font

# トップレベルウィンドウ作成
root = tk.Tk()
root.geometry("600x450")
# ラベル フォントサイズ設定
font_label = font.Font(size=12)
root.option_add("*Label.font", font_label)

# PanedWindow [main]
pw_main = tk.PanedWindow(root, orient=tk.VERTICAL, background="blue")
pw_main.pack(expand=True, fill=tk.BOTH)
# PanedWindow [Title]
pw_title = tk.PanedWindow(pw_main, height=50)
pw_main.add(pw_title, stretch="never", minsize=50)
# PanedWindow [A]
pw_a = tk.PanedWindow(pw_main, height=80)
pw_main.add(pw_a, stretch="always")
# PanedWindow [B]
pw_b = tk.PanedWindow(pw_main, height=80)
pw_main.add(pw_b, stretch="always")
# PanedWindow [C]
pw_c = tk.PanedWindow(pw_main, height=80)
pw_main.add(pw_c, stretch="always")
# PanedWindow [D]
pw_d = tk.PanedWindow(pw_main, height=80)
pw_main.add(pw_d, stretch="always")
# PanedWindow [E]
pw_e = tk.PanedWindow(pw_main, height=80)
pw_main.add(pw_e, stretch="always")

# [Title] - [label]
label_0 = tk.Label(pw_title, text="PanedWindow", bg="lightyellow")
pw_title.add(label_0, width=100, stretch="always")

# [A] - [Pane 0]
label_a_0 = tk.Label(pw_a, text="Pane 0\n\nstretch='always'", bg="LightSalmon")
pw_a.add(label_a_0, width=100, stretch="always")
# [A] - [Pane 1]
label_a_1 = tk.Label(pw_a, text="Pane 1\n\nstretch='always'", bg="lightgreen")
pw_a.add(label_a_1, width=100, stretch="always")
# [A] - [Pane 2]
label_a_2 = tk.Label(pw_a, text="Pane 2\n\nstretch='always'", bg="lightblue")
pw_a.add(label_a_2, width=100, stretch="always")

# [B] - [Pane 0]
label_b_0 = tk.Label(pw_b, text="Pane 0\n\nstretch='first'", bg="LightSalmon")
pw_b.add(label_b_0, width=100, stretch="first")
# [B] - [Pane 1]
label_b_1 = tk.Label(pw_b, text="Pane 1\n\nstretch='first'", bg="lightgreen")
pw_b.add(label_b_1, width=100, stretch="first")
# [B] - [Pane 2]
label_b_2 = tk.Label(pw_b, text="Pane 2\n\nstretch='first'", bg="lightblue")
pw_b.add(label_b_2, width=100, stretch="first")

# [C] - [Pane 0]
label_c_0 = tk.Label(pw_c, text="Pane 0\n\nstretch='last'", bg="LightSalmon")
pw_c.add(label_c_0, width=100, stretch="last")
# [C] - [Pane 1]
label_c_1 = tk.Label(pw_c, text="Pane 1\n\nstretch='last'", bg="lightgreen")
pw_c.add(label_c_1, width=100, stretch="last")
# [C] - [Pane 2]
label_c_2 = tk.Label(pw_c, text="Pane 2\n\nstretch='last'", bg="lightblue")
pw_c.add(label_c_2, width=100, stretch="last")

# [D] - [Pane 0]
label_d_0 = tk.Label(pw_d, text="Pane 0\n\nstretch='middle'", bg="LightSalmon")
pw_d.add(label_d_0, width=100, stretch="middle")
# [D] - [Pane 1]
label_d_1 = tk.Label(pw_d, text="Pane 1\n\nstretch='middle'", bg="lightgreen")
pw_d.add(label_d_1, width=100, stretch="middle")
# [D] - [Pane 2]
label_d_2 = tk.Label(pw_d, text="Pane 2\n\nstretch='middle'", bg="lightblue")
pw_d.add(label_d_2, width=100, stretch="middle")

# [E] - [Pane 0]
label_e_0 = tk.Label(pw_e, text="Pane 0\n\nstretch='never'", bg="LightSalmon")
pw_e.add(label_e_0, width=100, stretch="never")
# [E] - [Pane 1]
label_e_1 = tk.Label(pw_e, text="Pane 1\n\nstretch='never'", bg="lightgreen")
pw_e.add(label_e_1, width=100, stretch="never")
# [E] - [Pane 2]
label_e_2 = tk.Label(pw_e, text="Pane 2\n\nstretch='never'", bg="lightblue")
pw_e.add(label_e_2, width=100, stretch="never")

# メインループ
root.mainloop()

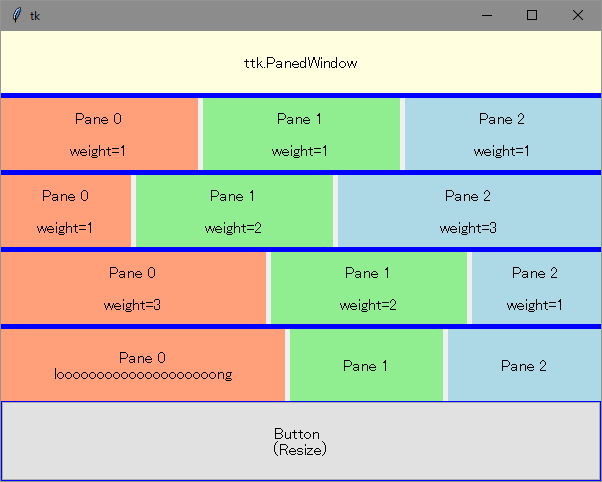

import tkinter as tk
import tkinter.ttk as ttk
from tkinter import font

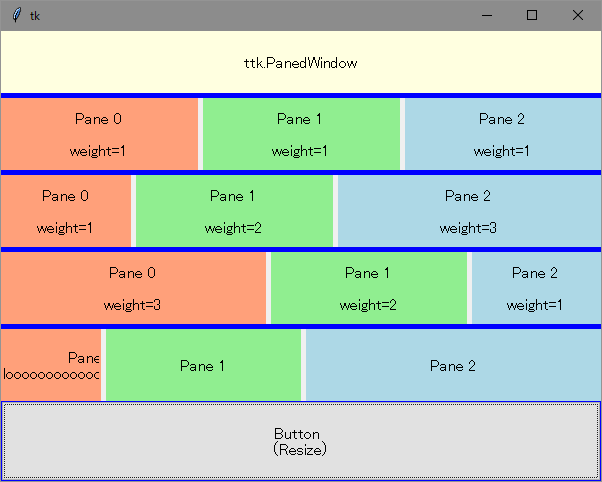

def resize():
    pw_d.sashpos(0, 100)
    pw_d.sashpos(1, 300)


# トップレベルウィンドウ作成
root = tk.Tk()
root.geometry("600x450")
# ラベル フォントサイズ設定
font_wiget = font.Font(size=12)
root.option_add("*TLabel.font", font_wiget)
# スタイル設定
style = ttk.Style()
style.configure(
    "example.TPanedwindow",
    background="blue",
)
style.configure("colorT.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="lightyellow")
style.configure("color0.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="LightSalmon")
style.configure("color1.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="lightgreen")
style.configure("color2.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="lightblue")

# PanedWindow [main]
pw_main = ttk.PanedWindow(root, style="example.TPanedwindow")
pw_main.pack(expand=True, fill=tk.BOTH)
# PanedWindow [Title]
pw_title = ttk.PanedWindow(pw_main, height=50, orient=tk.HORIZONTAL)
pw_main.add(pw_title, weight=1)
# PanedWindow [A]
pw_a = ttk.PanedWindow(pw_main, height=50, orient=tk.HORIZONTAL)
pw_main.add(pw_a, weight=2)
# PanedWindow [B]
pw_b = ttk.PanedWindow(pw_main, height=50, orient=tk.HORIZONTAL)
pw_main.add(pw_b, weight=2)
# PanedWindow [C]
pw_c = ttk.PanedWindow(pw_main, height=50, orient=tk.HORIZONTAL)
pw_main.add(pw_c, weight=2)
# PanedWindow [D]
pw_d = ttk.PanedWindow(pw_main, height=50, orient=tk.HORIZONTAL)
pw_main.add(pw_d, weight=2)

# [Title] - [label]
label_0 = ttk.Label(pw_title, text="ttk.PanedWindow", style="colorT.TLabel")
pw_title.add(label_0, weight=1)

# [A] - [Pane 0]
label_a_0 = ttk.Label(pw_a, text="Pane 0\n\nweight=1", style="color0.TLabel")
pw_a.add(label_a_0, weight=1)
# [A] - [Pane 1]
label_a_1 = ttk.Label(pw_a, text="Pane 1\n\nweight=1", style="color1.TLabel")
pw_a.add(label_a_1, weight=1)
# [A] - [Pane 2]
label_a_2 = ttk.Label(pw_a, text="Pane 2\n\nweight=1", style="color2.TLabel")
pw_a.add(label_a_2, weight=1)

# [B] - [Pane 0]
label_b_0 = ttk.Label(pw_b, text="Pane 0\n\nweight=1", style="color0.TLabel")
pw_b.add(label_b_0, weight=1)
# [B] - [Pane 1]
label_b_1 = ttk.Label(pw_b, text="Pane 1\n\nweight=2", style="color1.TLabel")
pw_b.add(label_b_1, weight=2)
# [B] - [Pane 2]
label_b_2 = ttk.Label(pw_b, text="Pane 2\n\nweight=3", style="color2.TLabel")
pw_b.add(label_b_2, weight=3)

# [C] - [Pane 0]
label_c_0 = ttk.Label(pw_c, text="Pane 0\n\nweight=3", style="color0.TLabel")
pw_c.add(label_c_0, weight=3)
# [C] - [Pane 1]
label_c_1 = ttk.Label(pw_c, text="Pane 1\n\nweight=2", style="color1.TLabel")
pw_c.add(label_c_1, weight=2)
# [C] - [Pane 2]
label_c_2 = ttk.Label(pw_c, text="Pane 2\n\nweight=1", style="color2.TLabel")
pw_c.add(label_c_2, weight=1)

# [D] - [Pane 0]
label_d_0 = ttk.Label(pw_d, text="Pane 0\nloooooooooooooooooooong", style="color0.TLabel")
pw_d.add(label_d_0, weight=1)
# [D] - [Pane 1]
label_d_1 = ttk.Label(pw_d, text="Pane 1", style="color1.TLabel")
pw_d.add(label_d_1, weight=1)
# [D] - [Pane 2]
label_d_2 = ttk.Label(pw_d, text="Pane 2", style="color2.TLabel")
pw_d.add(label_d_2, weight=1)

# [Resize]
style.configure("example.TButton", font=font_wiget, background="blue")
button_resize = ttk.Button(root, text="Button\n(Resize)", command=resize, padding=20, style="example.TButton")
button_resize.pack(fill=tk.BOTH)

# メインループ
root.mainloop()

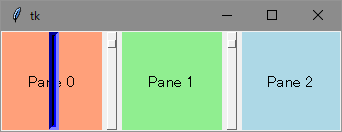

import tkinter as tk
from tkinter import font

# トップレベルウィンドウ作成
root = tk.Tk()
root.geometry("340x100")
# ラベル フォントサイズ設定
font_label = font.Font(size=12)
root.option_add("*Label.font", font_label)

# PanedWindow [Main]
pw_main = tk.PanedWindow(
    root,
    # ハンドル 関連
    showhandle=True,
    # サッシ(枠) 関連
    opaqueresize=False,
    proxybackground="blue",
    proxyborderwidth=5,
    proxyrelief=tk.SUNKEN,
    sashcursor="cross",
    sashpad=5,
    sashrelief=tk.RAISED,
    sashwidth=10,
)
pw_main.pack(expand=True, fill=tk.BOTH)
# [Main] - [Pane 0]
label_0 = tk.Label(pw_main, text="Pane 0", bg="LightSalmon")
pw_main.add(label_0, width=100)
# [Main] - [Pane 1]
label_1 = tk.Label(pw_main, text="Pane 1", bg="lightgreen")
pw_main.add(label_1, width=100)
# [Main] - [Pane 2]
label_2 = tk.Label(pw_main, text="Pane 2", bg="lightblue")
pw_main.add(label_2, width=100)

# メインループ
root.mainloop()

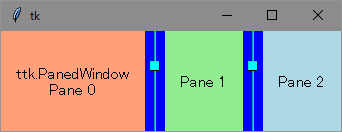

import tkinter as tk
import tkinter.ttk as ttk
from tkinter import font

# トップレベルウィンドウ作成
root = tk.Tk()
root.geometry("340x100")
# ラベル フォントサイズ設定
font_label = font.Font(size=12)
root.option_add("*TLabel.font", font_label)

# PanedWindow [Main]
style = ttk.Style()
print(style.theme_names())
# 出力例：('winnative', 'clam', 'alt', 'default', 'classic', 'vista', 'xpnative')
style.theme_use("classic")
style.configure(
    "example.TPanedwindow",
    background="blue",
)
style.configure(
    "example.TPanedwindow.Vertical.Sash",
    background="cyan",
    handlepad=30,
    handlesize=10,
    sashpad=5,
    sashthickness=20,
)
pw_main = ttk.PanedWindow(
    root,
    orient=tk.HORIZONTAL,
    style="example.TPanedwindow",
)
pw_main.pack(expand=True, fill=tk.BOTH)
# スタイル設定
style.configure("color0.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="LightSalmon")
style.configure("color1.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="lightgreen")
style.configure("color2.TLabel", anchor=tk.CENTER, justify=tk.CENTER, background="lightblue")
# [Main] - [Pane 0]
label_0 = ttk.Label(pw_main, text="ttk.PanedWindow\nPane 0", style="color0.TLabel")
pw_main.add(label_0, weight=1)
# [Main] - [Pane 1]
label_1 = ttk.Label(pw_main, text="Pane 1", style="color1.TLabel")
pw_main.add(label_1, weight=1)
# [Main] - [Pane 2]
label_2 = ttk.Label(pw_main, text="Pane 2", style="color2.TLabel")
pw_main.add(label_2, weight=1)

# メインループ
root.mainloop()

import tkinter as tk
import tkinter.ttk as ttk
from tkinter import font


# <<EnteredChild>>
def entered_child_event(event):
    change_pane()


# ペイン変更
def change_pane():
    mouse_x = pw_main.winfo_pointerx() - pw_main.winfo_rootx()
    count = len(pw_main.panes())
    index = count - 1
    for i in range(count - 1):
        sash_x = pw_main.sashpos(i)
        if mouse_x < sash_x:
            index = i
            break
    for i in range(len(list_label)):
        if i == index:
            list_label[i]['relief'] = tk.RAISED
        else:
            list_label[i]['relief'] = tk.FLAT


# <Enter>
def enter_event(event):
    if pw_main.identify(event.x, event.y) == "":
        change_pane()


# <Leave>
def leave_event(event):
    for label in list_label:
        label['relief'] = tk.FLAT


# トップレベルウィンドウ作成
root = tk.Tk()
root.geometry("470x100")
# ラベル フォントサイズ設定
font_label = font.Font(size=12)
root.option_add("*Label.font", font_label)

# PanedWindow [Main]
style = ttk.Style()
style.configure(
    "example.TPanedwindow",
    background="blue",
)
style.configure(
    "example.TPanedwindow.Vertical.Sash",
    sashthickness=10,
)
pw_main = ttk.PanedWindow(
    root,
    style="example.TPanedwindow",
    orient=tk.HORIZONTAL,
)
pw_main.pack(expand=True, fill=tk.BOTH)
# [Main] - [Pane 0]

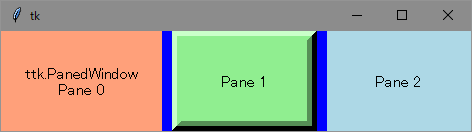

label_0 = tk.Label(pw_main, text="ttk.PanedWindow\nPane 0", bg="LightSalmon", bd=10)
pw_main.add(label_0, weight=1)
# [Main] - [Pane 1]
label_1 = tk.Label(pw_main, text="Pane 1", bg="lightgreen", bd=10)
pw_main.add(label_1, weight=3)
# [Main] - [Pane 2]
label_2 = tk.Label(pw_main, text="Pane 2", bg="lightblue", bd=10)
pw_main.add(label_2, weight=3)

# イベント設定
list_label = [label_0, label_1, label_2]
pw_main.bind("<<EnteredChild>>", entered_child_event)
pw_main.bind("<Enter>", enter_event)
pw_main.bind("<Leave>", leave_event)

# メインループ
root.mainloop()
