tkinter.(ttk.)LabelFrame【ラベル付きフレーム ウィジェット】

色の詳細

ラベル配置位置の詳細 ( labelanchor )

マウスカーソル名の詳細 ( cursor )

内部間隔リストの詳細 ( padding )

外観の詳細 ( relief )

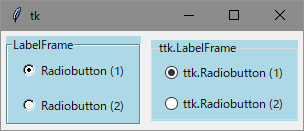

import tkinter as tk
import tkinter.ttk as ttk

# トップレベルウィンドウ作成
root = tk.Tk()

# tk.LabelFrame
labelframe = tk.LabelFrame(
    root,
    text="LabelFrame",
    relief=tk.GROOVE,
    background="lightblue",
)
labelframe.pack(side=tk.LEFT, padx=5, pady=5)

# Radio
var_radio = tk.IntVar(value=1)
radio_1 = tk.Radiobutton(
    labelframe,
    text="Radiobutton (1)",
    value=1,
    variable=var_radio,
    background="lightblue",
)
radio_1.pack(padx=10, pady=5)
radio_2 = tk.Radiobutton(
    labelframe,
    text="Radiobutton (2)",
    value=2,
    variable=var_radio,
    background="lightblue",
)
radio_2.pack(padx=10, pady=5)

# ttk.LabelFrame
style = ttk.Style()
style.configure(
    "example.TLabelframe",
    background="lightblue",
)
style.configure(
    "example.TLabelframe.Label",
    background="lightblue",
)
labelframe_ttk = ttk.LabelFrame(
    root,
    style="example.TLabelframe",
    text="ttk.LabelFrame",
    relief=tk.GROOVE,
)
labelframe_ttk.pack(side=tk.LEFT, padx=5, pady=5)

# ttk.Radio
style.configure(
    "example.TRadiobutton",
    background="lightblue",
)
var_radio_ttk = tk.IntVar(value=1)
radio_ttk_1 = ttk.Radiobutton(
    labelframe_ttk,
    style="example.TRadiobutton",
    text="ttk.Radiobutton (1)",
    value=1,
    variable=var_radio_ttk,
)
radio_ttk_1.pack(padx=10, pady=5)
radio_ttk_2 = ttk.Radiobutton(
    labelframe_ttk,
    style="example.TRadiobutton",
    text="ttk.Radiobutton (2)",
    value=2,
    variable=var_radio_ttk,
)
radio_ttk_2.pack(padx=10, pady=5)

# メインループ
root.mainloop()

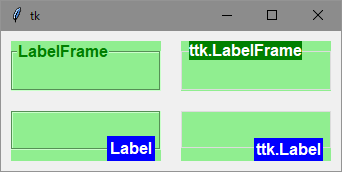

import tkinter as tk
import tkinter.ttk as ttk
from tkinter import font

# トップレベルウィンドウ作成
root = tk.Tk()
font_std = font.Font(size=12, weight="bold")

# tk.LabelFrame
labelframe = tk.LabelFrame(
    root,
    text="LabelFrame",
    font=font_std,
    height=50,
    width=150,
    relief=tk.GROOVE,
    background="lightgreen",
    foreground="green",
)
labelframe.grid(row=0, column=0, padx=10, pady=10)

# tk.LabelFrame (labelwidget)
labelframe_2 = tk.LabelFrame(
    root,
    labelanchor=tk.SE,
    height=50,
    width=150,
    relief=tk.GROOVE,
    background="lightgreen",
)
widget = tk.Label(
    labelframe_2,
    text="Label",
    font=font_std,
    background="blue",
    foreground="white",
)
labelframe_2['labelwidget'] = widget
labelframe_2.grid(row=1, column=0, padx=10, pady=10)

# ttk.LabelFrame
style = ttk.Style()
style.configure(
    "example.TLabelframe",
    background="lightgreen",
)
style.configure(
    "example.TLabelframe.Label",
    font=font_std,
    background="green",
    foreground="white",
)
labelframe_ttk = ttk.LabelFrame(
    root,
    style="example.TLabelframe",
    text="ttk.LabelFrame",
    height=50,
    width=150,
    relief=tk.GROOVE,
)
labelframe_ttk.grid(row=0, column=1, padx=10, pady=10)

# ttk.LabelFrame (labelwidget)
labelframe_ttk_2 = ttk.LabelFrame(
    root,
    style="example.TLabelframe",
    labelanchor=tk.SE,
    height=50,
    width=150,
    relief=tk.GROOVE,
)
widget_ttk = ttk.Label(
    labelframe_ttk_2,
    text="ttk.Label",
    font=font_std,
    background="blue",
    foreground="white",
)
labelframe_ttk_2['labelwidget'] = widget_ttk
labelframe_ttk_2.grid(row=1, column=1, padx=10, pady=10)

# メインループ
root.mainloop()

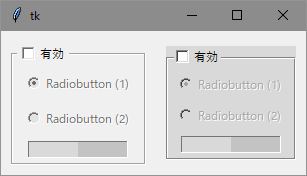

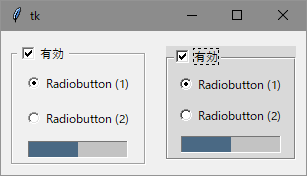

Progressbar【プログレスバー】の変更が判別できる様にテーマ変更

import tkinter as tk
import tkinter.ttk as ttk


def set_state():
    if var_check.get() == tk.ON:
        flag = tk.NORMAL
        stateflags = ['!disabled']
    else:
        flag = tk.DISABLED
        stateflags = ['disabled']
    for child in labelframe.winfo_children():
        keys = child.keys()
        if "state" in keys:
            child.config(state=flag)
        if getattr(child, "state", None) != None:
            child.state(stateflags)


def set_state_ttk():
    if var_check_ttk.get() == tk.ON:
        flag = tk.NORMAL
        stateflags = ['!disabled']
    else:
        flag = tk.DISABLED
        stateflags = ['disabled']
    for child in labelframe_ttk.winfo_children():
        keys = child.keys()
        if "state" in keys:
            child.config(state=flag)
        if getattr(child, "state", None) != None:
            child.state(stateflags)


# トップレベルウィンドウ作成
root = tk.Tk()
style = ttk.Style()
style.theme_use("alt")

# tk.LabelFrame
labelframe = tk.LabelFrame(
    root,
    relief=tk.GROOVE,
)
labelframe.grid(row=0, column=0, padx=10, pady=5)

# Checkbutton
var_check = tk.IntVar(value=tk.ON)
checkbutton = tk.Checkbutton(
    root,
    command=set_state,
    text="有効",
    variable=var_check,
)
labelframe['labelwidget'] = checkbutton
labelframe.pack(side=tk.LEFT, padx=10, pady=10)

# Radio
var_radio = tk.IntVar(value=1)
radio_1 = tk.Radiobutton(
    labelframe,
    text="Radiobutton (1)",
    value=1,
    variable=var_radio,
)
radio_1.pack(padx=10, pady=5)
radio_2 = tk.Radiobutton(
    labelframe,
    text="Radiobutton (2)",
    value=2,
    variable=var_radio,
)
radio_2.pack(padx=10, pady=5)

# Progressbar
progressbar = ttk.Progressbar(
    labelframe,
    value=50,
)
progressbar.pack(padx=10, pady=5)

# ttk.LabelFrame
labelframe_ttk = ttk.LabelFrame(
    root,
    relief=tk.GROOVE,
)

# ttk.Checkbutton
var_check_ttk = tk.IntVar(value=tk.ON)
checkbutton_ttk = ttk.Checkbutton(
    root,
    command=set_state_ttk,
    text="有効",
    variable=var_check_ttk,
)
labelframe_ttk['labelwidget'] = checkbutton_ttk
labelframe_ttk.pack(side=tk.LEFT, padx=10, pady=10)

# ttk.Radio
var_radio_ttk = tk.IntVar(value=1)
radio_ttk_1 = ttk.Radiobutton(
    labelframe_ttk,
    text="Radiobutton (1)",
    value=1,
    variable=var_radio_ttk,
)
radio_ttk_1.pack(padx=10, pady=5)
radio_ttk_2 = ttk.Radiobutton(
    labelframe_ttk,
    text="Radiobutton (2)",
    value=2,
    variable=var_radio_ttk,
)
radio_ttk_2.pack(padx=10, pady=5)

# Progressbar
progressbar_ttk = ttk.Progressbar(
    labelframe_ttk,
    value=50,
)
progressbar_ttk.pack(padx=10, pady=5)

# メインループ
checkbutton.invoke()
checkbutton_ttk.invoke()
root.mainloop()
